Bison CarbonMax Volleyball System

Bison CarbonMax Volleyball System
Manufacturer: Bison

Bison CarbonMax Volleyball System

The only carbon fiber volleyball system with crank style internal net height adjustment feature for easy and accurate net fine tuning. 32# post fits in 3″ floor sockets.

  • VB7000 CarbonMax Composite Stats
  • Lower post material: 3″ Aluminum
  • Upper post material: 3½” Carbon Fiber
  • Floor socket diameter 3″ (Free Socket Adapters)
  • Non-winch post weight: 32#
  • Winch post weight: 37#
  • Approx. post deflection: .98″
  • Post warranty: Lifetime Limited
  • Winch style: 26:1 Worm Gear
  • Winch warranty: Lifetime Limited
  • Net height indicator: Engraved
  • Net height adjustment method: Internal Lead Screw
  • Net height crank
  • Adjustable foot: Yes
  • Free lettering on padding: Yes (see chart)



Maximum rigidity, maximum convenience, maximum overall performance and maximum satisfaction. Carbon fiber 3½" outer posts with 3" tempered aluminum floor socket stem and inner extension tube for rigidity and durability •Lighter than aluminum design and windup internal net height adjustment maximize fast, easy and convenient set up and teardown • 26:1 worm gear winch and knotless mesh net with Kevlar top rope maximize net tension performance • 40% less deflection than even Centerline Elite Aluminum Systems, as much as 60% less deflection than popular aluminum systems

from other manufacturers • Internal net height adjuster has a durable ¾" diameter lead screw for easy net height adjustment even when the net is tensioned • Safety padding is available in 16 school colors and includes lettering (up to 10 letters on all four sides) • Adapters for installation into existing 3½" or 4" floor sockets are free on request • Other features include premium Centerline antennae, net rope covers and 78" to 98" net height adjustment for all levels of play • Entire system meets NCAA, National High School Federation and USVBA rules • Order VB73 or VB76 padded official’s stand separately •  Complete competition system includes posts, net tensioning winch, VB1250K net, net storage bag, VB13 antennae, VB51P safety padding, padding lettering, net rope covers, VB23 floor sockets • Lifetime limited warranty on posts and winch. Post weight for non-winch end 32 lbs; winch end 37 lbs.

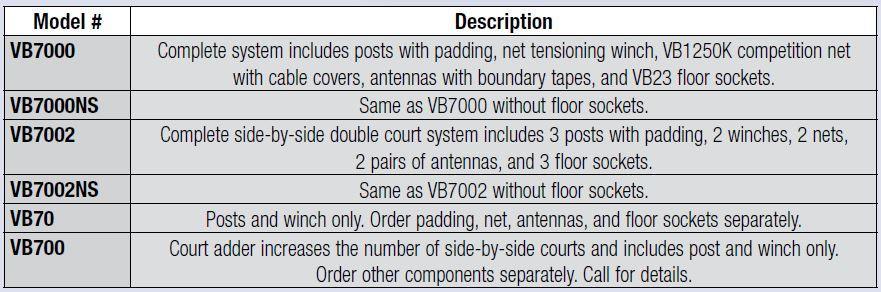

CarbonMax odel Order #

Approx. Shipping Weight



Description

Free Lettering

VB7000

150#, Truck

Complete system described above.

Free chain net height guage, net storage bag, and lettered post padding!

Yes

VB7000NS

130#, Truck

Same as VB7000 with exclusion  of VB23 floor sockets.

Socket adapters free upon request.

Yes

VB7002

230#, Truck

Complete side-by-side double court system includes three posts, two net tensioning winches, three VB23 floor sockets, three post pads,  two nets,  two sets  of antennae and rope covers.

Free chain net height guage, net storage bag, and lettered post padding!

Yes

VB7002NS

210#, Truck

Same system as VB7002 with exclusion  of VB23 floor sockets.

Socket adapters free upon request.

Yes

VB70

95#, Truck

Posts and net tensioning winch only. Order net,
padding, antennae and floor sockets separately.

No

VB700

50#, Truck

Court adder increases the number of side-by-side courts and  includes  post  and  net  tensioning  winch.  Order other components separately. Call for details.

No





CarbonMax Volleyball System VB7000 - With Free Lettering
*
SKU: VB7000
$5,085.00
CarbonMax Volleyball System VB7000NS - With Free Lettering
*
SKU: VB7000NS
$4,396.00
CarbonMax Volleyball System VB7002 - With Free Lettering
*
SKU: VB7002
$7,787.00
CarbonMax Volleyball System VB7002NS - With Free Lettering
*
SKU: VB7002NS
$7,300.00
CarbonMax Volleyball System VB70
SKU: VB70
$3,707.00
CarbonMax Volleyball System VB700
SKU: VB700
$2,540.00
