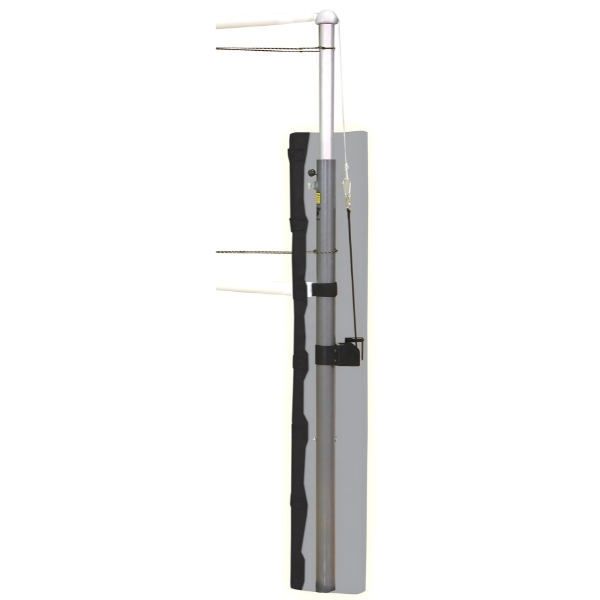

Bison Centerline Elite Aluminum Volleyball System
Division I college and elite high school programs that desire the perfect balance
between weight, cost and post deflection have made this a top seller. The most rigid aluminum system on the market, this 34# telescoping post fits any 3″ floor sockets.
- VB1000 Centerline Elite Aluminum Stats
- Upper post material: 3″ Aluminum
- Lower post material: 3″ Aluminum
- Floor socket diameter (ask about 1-7/8″): 3″ (Free Socket Adapters)
- Non-winch post weight: 34#
- Winch post weight: 39#
- Approx. post deflection: 1.97″
- Post warranty: Lifetime Limited
- Winch style: 26:1 Worm Gear
- Winch warranty: Lifetime Limited
- Net height indicator: Engraved
- Net height adjustment method: Spring Assisted Telescoping
- Adjustable foot: Yes
- Free lettering on padding: Yes (see chart)
Power Volleyball at the highest level demands equipment to match. Centerline Elite Aluminum is used in top collegiate programs across the country and is designed for years of dependable use and quick, easy and bowstring tight set up • Aluminum systems have gained in popularity due to their lightweight handling for installation and removal • With Centerline Elite Aluminum standards, you don’t sacrifice rigidity to get lightweight convenience • These custom extrusions put high strength, lightweight aluminum where it matters most to decrease post deflection as much as 30% over other well-known aluminum systems • Outer pole has durable powder coated finish • Complete competition system includes posts, net tensioning winch, VB1250K net, VB13 antennae, VB51P safety padding , net rope covers and VB23 floor sockets • Free socket adapters on request • Order VB73 or VB76 official's platform separately • Lifetime limited warranty on posts and winch.
Post weight for non-winch end 34 lbs; winch end 39 lbs.
VB1000 Instruction Manual & Product Specification
VB1000 & VB1000NS & VB1002 & VB1002NS Details
|

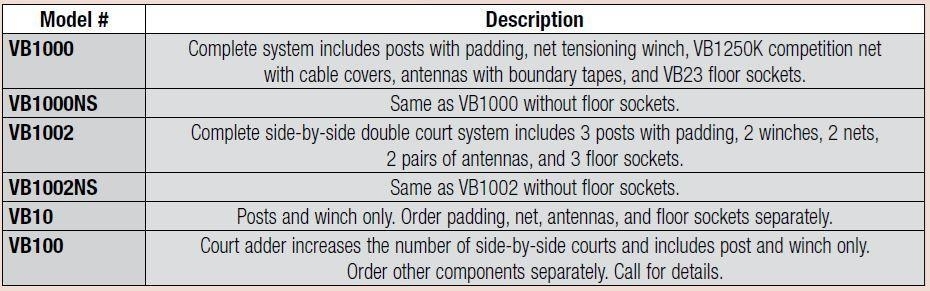

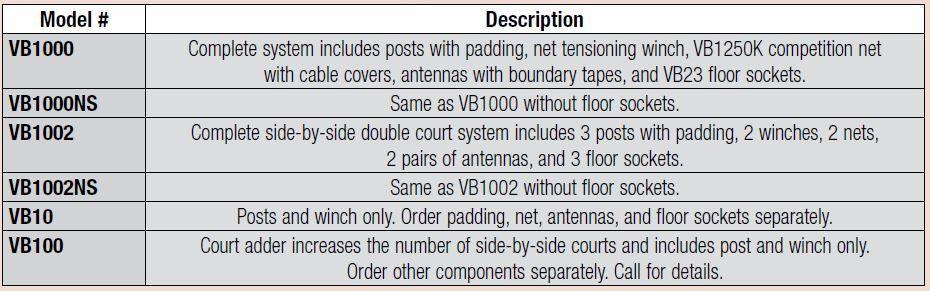

Centerline Aluminum Model Order #
|
Approx. Shipping Weight
|
Description
|
Free Lettering
|
|
VB1000
|
145#, Truck
|
Complete system described above.
Free chain net height guage, net storage bag, and lettered post padding!
|
Yes
|
|
VB1000NS
|
130#, Truck
|
Same as VB1000 with exclusion of VB23 floor sockets.
Socket adapters free upon request.
|
Yes
|
|
VB1002
|
230#, Truck
|
Complete side-by-side double court system includes three posts, two net tensioning winches, three VB23 floor sockets, three post pads, two nets, two sets of antennae and rope covers.
Free chain net height guage, net storage bag, and lettered post padding!
|
Yes
|
|
VB1002NS
|
210#, Truck
|
Same system as VB1002 with exclusion of VB23 floor sockets.
Socket adapters free upon request.
|
Yes
|
|
VB10
|
95#, Truck
|
Posts and net tensioning winch only. Order net, padding, antennae and floor sockets separately.
|
No
|
|
VB100
|
50#, Truck
|
Court adder increases the number of side-by-side courts and includes post and net tensioning winch. Order other components separately. Call for details.
|
No
|
