Bison Centerline Elite Steel Hybrid Volleyball System
Some programs set up and tear down courts infrequently and prefer the maximum rigidity of a heavy steel system. At 61lb, this 3″ telescoping post design allows the least pole deflection possible at a cost below comparable carbon fiber or aluminum systems.
- VB2000 Centerline Elite Steel Hybrid Stats
- Upper post material: 3″ Steel
- Lower post material: 3″ Aluminum
- Floor socket diameter: 3″ (Free Socket Adapters)
- Non-winch post weight: 61#
- Winch post weight: 66#
- Approx. post deflection: 1.25″
- Post warranty: Lifetime Limited
- Winch style: 26:1 Worm Gear
- Winch warranty: Lifetime Limited
- Net height indicator: Engraved
- Net height adjustment method: Spring Assisted Telescoping
- Adjustable foot: Yes
- Free lettering on padding: Yes (see chart)
When transport and storage of heavy steel standards is not a concern. Centerline Steel Hybrid is your logical choice • No material can surpass the rigidity and durability of steel and Bison has put high tensile strength steel where it matters most, the lower section of the pole • Only Bison offers a hybrid system that includes a lighter weight aluminum, inner telescoping pole where the forces of net tensioning don't require heavy steel • Outer pole has a durable powder coated finish • Complete competition systems including posts, net tensioning winch, VB1250K net, VB13 antennae, VB51P safety padding (choose from 16 colors), net rope covers and VB23 floor sockets • Free socket adapters on request • Order VB73 or VB76 officials platform separately • Lifetime limited warranty on posts and winch. Post weight for non winch end 61lbs; winch end 66 lbs.
VB2000 Instruction Manual

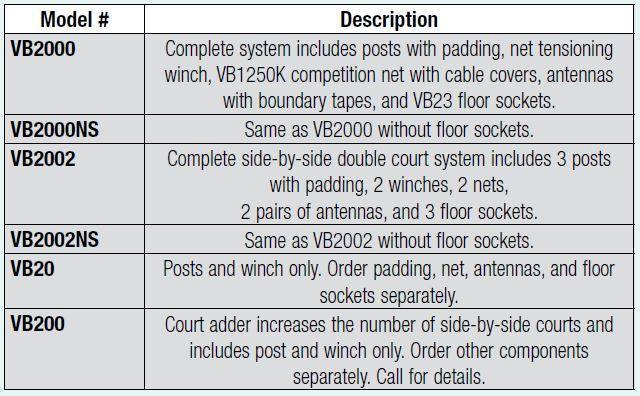

VB2000 & VB2000NS & VB2002 & VB2002NS Details
|
Centerline Steel Hybrid Model Order #
|
Approx. Shipping Weight
|
Description
|
Free Lettering
|
|
VB2000
|
220 lbs., Truck
|
Complete system described above.
Free chain net height guage, net storage bag, and lettered post padding!
|
Yes
|
|
VB2000NS
|
205 lbs., Truck
|
Same as VB1000 with exclusion of VB23 floor sockets.
Socket adapters free upon request.
|
Yes
|
|
VB2002
|
310 lbs., Truck
|
Complete side-by-side double court system includes three posts, two net tensioning winches, three VB23 floor sockets, three post pads, two nets, two sets of antennae and rope covers.
Free chain net height guage, net storage bag, and lettered post padding!
|
Yes
|
|
VB2002NS
|
280 lbs., Truck
|
Same system as VB1002 with exclusion of VB23 floor sockets.
Socket adapters free upon request.
|
Yes
|
|
VB20
|
150 lbs., Truck
|
Posts and net tensioning winch only. Order net,
padding, antennae and floor sockets separately.
|
No
|
|
VB200
|
80 lbs., Truck
|
Court adder increases the number of side-by-side courts and includes post and net tensioning winch. Order other components separately. Call for details.
|
No
|
